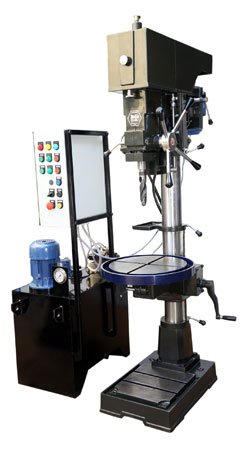

Itco pillar drilling machine of 25mm capacity has these features: Hardened and ground spindle is standard feature in this model. The spindle of this machine is made from alloy steel with six splines as per machine tools spline standard with spindle Morse Taper of MT-3. The drilling capacity of this machine is 25 mm in steel, 31 mm in cast iron. The main pillar is made up of seamless pipe of diameter 90 mm. 2Hp 1440rpm Electric Induction motor is required for running this machine. Round and square work tables are available with Dia 400 mm and 300x300mm resp. Spindle stroke of this machine is 165mm with centre distance of 240 mm. Standard accessories includes ready to fit Motor pulley and drill drift. Optional accessories includes, Coolant Tank & Pump, Drill Chuck, drill arbour, drill sleeves, quick change chuck, drill vice etc.
IMTC DM25
| DRILLING CAPACITY IN STEEL | 25 |
| DRILLING CAPACITY IN CAST IRON | 31 |
| TAPPING CAPACITY IN STEEL | 20 |
| TAPPING CAPACITY IN CAST IRON | 25 |
| MORSE TAPER IN SPINDLE | MT-3 |
| SPINDLE TRAVEL | 165 |
| PILLAR DIAMETER | 90 |
| PILLAR LENGTH | 1220 |
| DISTANCE BTW CENTRE OF SPINDLE & PILLAR FRONT | 240 |
| MAX DISTANCE BTW SPINDLE & TABLE | 560 |
| MAX DISTANCE BTW SPINDLE & BASE | 1065 |
| TABLE WORKING SPACE : | |
| ROUND | Ø 400 |
| BASE WORKING SURFACE (MACHINED) | 395 x 340 |
| OVERALL SIZE OF BASE | 610 x 370 |
| NO OF SPINDLE SPEEDS | 8 |
| RANGE OF SPINDLE SPEEDS (rpm) | 90 to 2100 rpm |
| V BELT | B – 54 |
| MOTOR | 2H.P, 1400 rpm |
| NET WEIGHT | 240kg |
