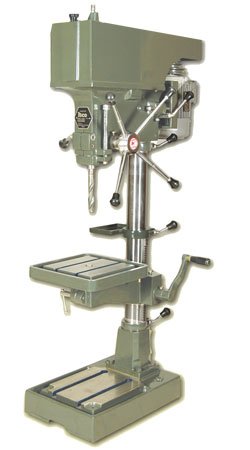

Design Features:
- Main Spindle made from alloy steel with four splines as per machine tool standard.
- M T bore of Spindle at final testing is 15 to 20 microns driven through broached sleeve.
- Steel Cast ‘UNBREAKABLE’ Arm with Machined ‘T’ Slots on working table.
- Drill head, Arm & other casting parts of best quality close grained Cast Iron.
- Taper Roller Bearings in Spindle & Double Ball Bearings in Spindle Pulley and one each Ball Bearing in body cup & bracket for Trouble Free & Long Life.
- All moving parts are made of alloy steel & accurately machined & ground to a close tolerance.
- Main Gears, Spindle Pulley & Motor Pulley are Perfectly balanced to avoid vibrations.
- Main components are excellently surfaced & treated with full stoving paint.
|
S.No. |
Particulars |
Size |
|
1. |
Drilling Capacity in Steel |
20 mm |
|
2. |
Drilling Capacity in Cast Iron |
22 mm |
|
3. |
Tapping Capacity |
16 mm |
|
4. |
Morse Taper in Spindle |
MT – 2 |
|
5. |
Spindle Travel |
125 mm |
|
6. |
Pillar Diameter |
72 mm |
|
7. |
Column to Spindle Distance |
215 mm |
|
8. |
Max. Distance Spindle to Table |
410 mm |
|
9. |
Max. Distance Spindle to Base |
785 mm |
|
10. |
Table Overall Size (Round/Square) |
Φ 325 mm/ 300 X 300 mm |
|
11. |
Spindle Speed |
8 |
|
12. |
Power/ Speed of Motor |
1 Hp/ 1440 RPM |
|
13. |
Speed Range |
80 to 2850 RPM |
|
14. |
V-Belt |
A – 45 |
|
15. |
Net Weight |
135 Kgs. |
